1-person portable USV for Calm water

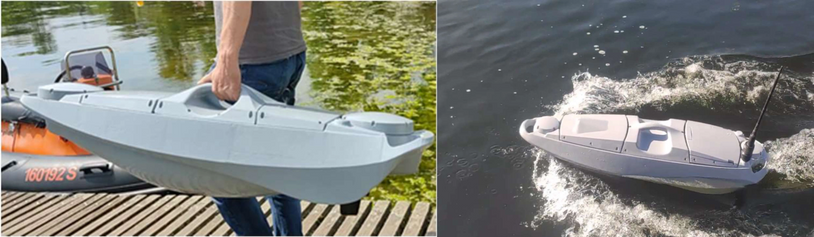

Bluedrone Surveyor USV
1-person deployable autonomous platform for
Single Beam and Multibeam
Based on the affordable COTS Blueboat USV platform, the Bluedrone Surveyor is custom-modified to deliver communication and remote range out to 10km line of site, with cellular redundancy. Stable, reliable, repeatable.
The platform folds and fits into a custom carrying case for rapid on-site deployment with minimal assembly. Efficiently move from site to site without the hassle.
Key Features:
10km communication range
>15 hour duration at 2 knot survey speed
Integrated camera
Weedless hull and propeller design
Point and click mission planning from controller
Hot swappable batteries, and external charging port
- Hull Design: Catamaran
- Sensor Integration: Single Beam, Multibeam
- Weight (w/ batteries): 37lbs (16.8kg)
- Dimensions: 47" x 36.5" x 18"
- Draft: 8.5"
- Payload capacity: 33lbs (15kg)
- Max Speed: 6knot
- Typical Survey Speed: 3knot
- Duration at survey speed: >18 hours
- Operating Conditions: 1-3'
- Propulsion: 2 x weedless electric props
- Hull Material: Rotomolded polyethylene
- Remote Range: >10km
- Comms Range: >10km
- Payload Options: Baywei M7/M1, R2Sonic 2020, Starfish SSS, CEE-LINE, CEE ECHO, CEESCOPE
USV's for more Dynamic Environments
WAM-V8
Wave Adaptive Modular Vessel (WAM-V®)
Innovative class of autonomous surface vessels (ASV) that use unique suspension technology to radically improve seagoing capabilities and provide an exceptionally stable platform for increased data acquisition quality. The articulating suspension and compliant hulls to isolate and reduce payload movement.
The unique WAM-V8 design features a remote controlled, retractable sonar mount and can be disassembled and transported as checked baggage on domestic airlines, and assembled onsite in inaccessible locations within an hour.
- Hull Design: Catamaran
- Sensor Integration: Multibeam, Sub Bottom Profiler
- Weight: 250lbs
- Dimensions: L (8ft/2.5 m) x W (4ft/1.2m)
- Draft: 4"
- Payload capacity: 100lbs (45kg)
- Max Speed: 6knot
- Typical Survey Speed: 3knot
- Duration at survey speed: 10 hours
- Operating Conditions: SS3 (1m)
- Propulsion: 2x 1100 W electric
- Hull Material: Inflatable Hypalon, Aluminum
- Remote Range: 2-5km (optional cellular)
- Comms Range: 2-5km (optional cellular)
- Payload Options: Baywei M7/M4/M9/M1, Norbit iWBMSx, Norbit Winghead, SeaBat T-series ASV
WAM-V16
Wave Adaptive Modular Vessel (WAM-V®)
Innovative class of autonomous surface vessels (ASV) that use unique suspension technology to radically improve seagoing capabilities and provide an exceptionally stable platform for increased data acquisition quality. The articulating suspension and compliant hulls to isolate and reduce payload movement.
The WAM-V16 is a workhorse, ideal for small to medium marine data collection projects –as a primary survey instrument or as an efficient force multiplier for existing vessels.
- Hull Design: Catamaran
- Sensor Integration: Multibeam, Sub Bottom Profiler, Sidescan sonar
- Weight: 450lbs (204kg)
- Dimensions: L (16ft/5 m) x W (8ft/2.5m)
- Draft: 20"
- Payload capacity: 250lbs (113kg)
- Max Speed: 11knot
- Typical Survey Speed: 6knot
- Duration at survey speed: 15 hours
- Operating Conditions: SS4 (2m)
- Propulsion: 2x 2 kW electric
- Hull Material: Inflatable Hypalon, Aluminum
- Remote Range: 2km
- Comms Range: over horizon with Starlink, cellular
- Payload Options: Baywei M7/M4/M9/M1, Norbit iWBMSx, Norbit Winghead, SeaBat T-series, R2Sonic 2022/2024/2026, Innomar Smart/Compact
WAM-V22
WAM-V22
Wave Adaptive Modular Vessel (WAM-V®)
Innovative class of autonomous surface vessels (ASV) that use unique suspension technology to radically improve seagoing capabilities and provide an exceptionally stable platform for increased data acquisition quality. The articulating suspension and compliant hulls to isolate and reduce payload movement.
The Wam-V22 design is unique in the nearshore and offshore space, in that it is an comparably low-cost option capable of operation in SS5 conditions for 70 hours. The platform retracts via hydraulics to a narrow footprint for more efficient storage and for legal trailering.
Stability, Longevity, Affordability in its class.
- Hull Design: Catamaran
- Sensor Integration: Multi-payload
- Weight: 2500lbs (1134kg)
- Dimensions: L (23ft/7 m) x W (12ft/3.6m)
- Draft: 22"
- Payload capacity: 600lbs (270kg)
- Max Speed: 20knot
- Typical Survey Speed: 6-8knot
- Duration at survey speed: 72 hours at 8knot
- Operating Conditions: SS5 (3m)
- Propulsion: 2x 30 hp gasoline or diesel
- Hull Material: Inflatable Hypalon, Aluminum
- Remote Range: 2km
- Comms Range: over horizon with Starlink, cellular
- Payload Options: Baywei M7/M4/M9/M1, Norbit iWBMSx, Norbit Winghead, SeaBat T20/T50/T51, R2Sonic 2022/2024/2026, Dual Head Multibeam, Towed Sidescan Sonar, Innomar Smart/Compact
